main characteristics
- Excellent machinability
- Good polishing
- High mechanical strength
- Good welding characteristics
- Good dimensional stability
- Good anodizing

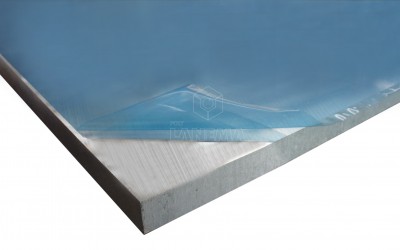

Aluminium Alloy AW 7075 Rectified
The aluminium alloy AW 7075 rectified combines good dimensional stability with high mecanical strenght. The excellent leveling and the low surface roughness, protected by a plastic film, make milling unnecessary. This combination of properties allows for significant cost savings in machining.
This alloy is used in machines and equipment, transport tables, jigs, robot arms and other tools and accessories.
Chemical Composition (% Weight)
| Elements | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti |
|---|---|---|---|---|---|---|---|---|
| Min | - | - | 1.2 | - | 2.1 | 0.18 | 5.1 | - |
| Max | 0.4 | 0.5 | 2.0 | 0.3 | 2.9 | 0.28 | 6.1 | 0.2 |
Set up your product
| Format | |
| Color | |
| Measure | |
| Length | Val. Máx.: |
| Width | Val. Máx.: |
| Lote | |
| Quantity | |
| Result: | |
POLISHING
MACHINABILITY
WELDABILITY
ELECTRICAL/THERMAL
CONDUCTIVITY
≈ 150 HB
BRINELL HARDNESS
2.81
DENSITY
ApPlications
- Machines and equipment
- Tools and accessories
- Transport tables
- Robot arms
- Jigs
- Mechanical Engineering
