main characteristics
- Excellent machining
- Good shape stability and high uniform mechanical properties (on plate thickness)
- High thermal conductivity (shorter cycles) and possibility of thicker parts
- Uniform resistance
Titulo Produto Teste
Sub Titulo Produto Teste
Certal® SPC

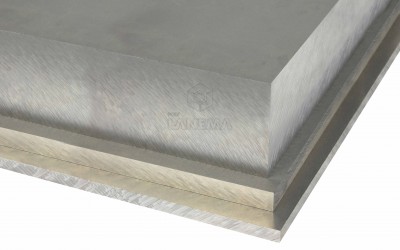

Certal® SPC has been optimized to provide excellent machinability, good dimensional weldability and high mechanical resistance across the entire thickness of the plate. Typical applications include injection and compression moulds for plastics. It is distinguished from Certal® by the availability in thickness over 150mm.
Chemical Composition (% Weight)
| Elements | Si | Fe | Cu | Mn | Mg | Cr | Zn | Zr | Ti | Al |
|---|---|---|---|---|---|---|---|---|---|---|
| Min | - | - | 0.5 | - | 2.6 | - | 4.3 | 0.15 | - | - |
| Max | 0.25 | 0.35 | 1.0 | 0.1 | 3.7 | 0.1 | 5.2 | 0.25 | 0.15 | Resto |
Set up your product
| Format | |
| Color | |
| Measure | |
| Length | Val. Máx.: |
| Width | Val. Máx.: |
| Lote | |
| Quantity | |
| Result: | |
Polishing
Machinability
Weldability
Electrical/Thermal
Conductivity
≈ 160 HB
Brinell Hardness
2.76
Density
Applications
- Hydraulic distribution blocks
- Molds for injection and compression of plastics
- Injection molds - blow
- Molds for thermoforming
- End Base Boards
- Machine components
- Molds for toys and automotive industry
- Industrial utensils and related supports
- Mechanical guides
