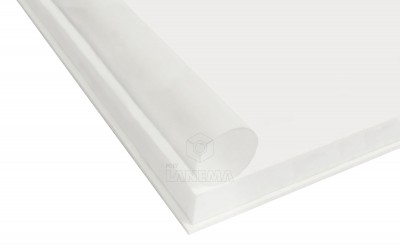

PVDF 1000

branco


PVDF 1000 is an unreinforced crystalline fluoropolymer, which combines good mechanical, thermal and electrical properties with excellent chemical resistance. It also shows good resistance to high energy radiations.

In addition, the composition of the raw material used for the manufacturing of PVDF complies with EU/FDA regulations for food-compatible plastic materials. All these properties make this product a very versatile engineering material and with numerous applications in diverse types of industry.

Set up your product


Format

Chemical

Resistance

Electrical

Insulation

Wear

resistance

sliding

properties

impact

resistance

+150ºC / -30ºC

temperature range

MAIN CHARACTERISTICS

- High maximum service air temperature (150 ° C continuously)

- High mechanical resistance, creep and stiffness (superior to other fluoropolymers)

- Excellent chemical resistance and hydrolysis

- Good resistance to wear, slip and shrinkage

- Very good dimensional stability

- Good dielectric properties and good electrical insulation

- Excellent resistance to UV rays and the environment

- Intrinsic flame resistance, much higher than that of the remaining fluoropolymers.

ApPLICATIONS

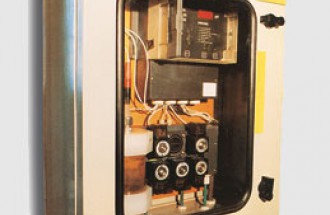

- Electrical / electronic insulation (including many components of semiconductor processes)

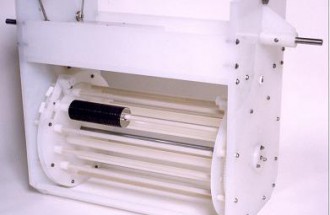

- Structural components requiring high strength and stiffness at high temperatures

Downloads

PVDF 1000 - Technical Datasheet

PVDF 1000 - Delivery Program
