Ketron® PEEK CA30

preto

Reinforced with 30% carbon fibers, it combines even greater rigidity, mechanical resistance and resistance to deformation than Ketron PEEK GF30® with an ideal wear resistance. In addition, compared to unreinforced PEEK, carbon fibers considerably reduce thermal expansion and provide 3.5 times more thermal conductivity - dissipating heat from the bearing surface more quickly, improving bearing life and bearing capacity. pressure speed.

Set up your product


Format

Chemical

Resistance

Electrical

Insulation

Wear

resistance

sliding

properties

impact

resistance

+250ºC / -20ºC

temperature range

MAIN CHARACTERISTICS


- High maximum service air temperature (250 ° C continuous and 310 ° C for short periods)

- High mechanical strength, stiffness and creep resistance, even at high temperatures

- Excellent resistance to chemicals (acids and alkalis) and hydrolysis

- Excellent wear and frictional behavior

- Consistent and improved dimensional stability

- Excellent resistance to high energy radiation (gamma rays and X-rays)

- Good PTFE replacement when mechanical load capacity is greater or when superior wear resistance is required

ApPLICATIONS


- Metal components

- Pump Components

- Valve seats

- Bearings

- Rollers

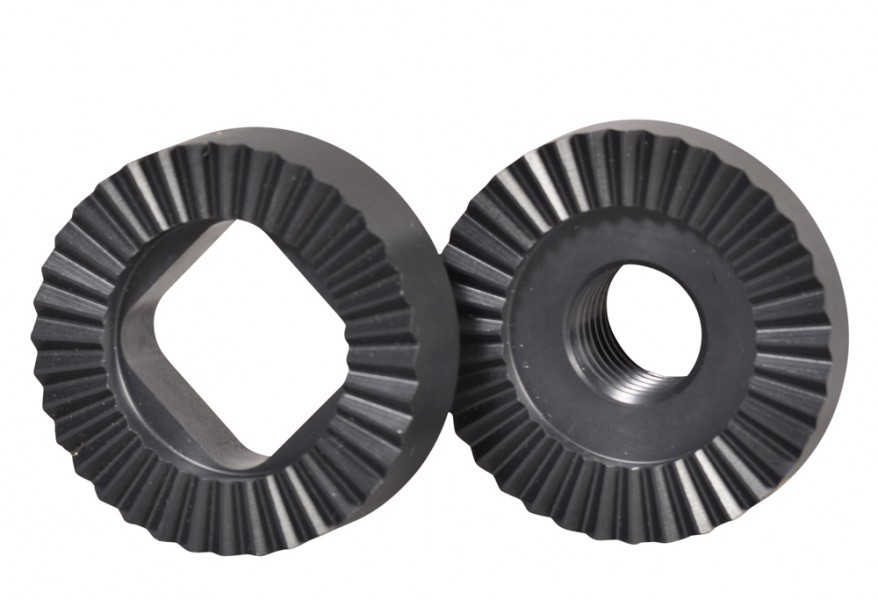

- Gears

- High temperature insulators

- Components exposed to boiling water or steam

- Bearing cages
